- Acronym: MultiRat-Coord
- Short description: Driven by the growing number of connected devices, the coordination and coexistence of heterogeneous wireless technologies such as LTE, WiFi as well as 5G has become a key research area today. The MultiRat-Coord prototyping system focuses on the joint real-time experimentation of LTE and WiFi systems utilizing a single software-defined radio platform. Additionally, a 5G GFDM link is available using the same hardware. This platform allows new experimentation results that will lead to a better understanding of the trade-offs when using different radio access technologies together as it would be the case in practical wireless network deployments.
- Conceptual figure:

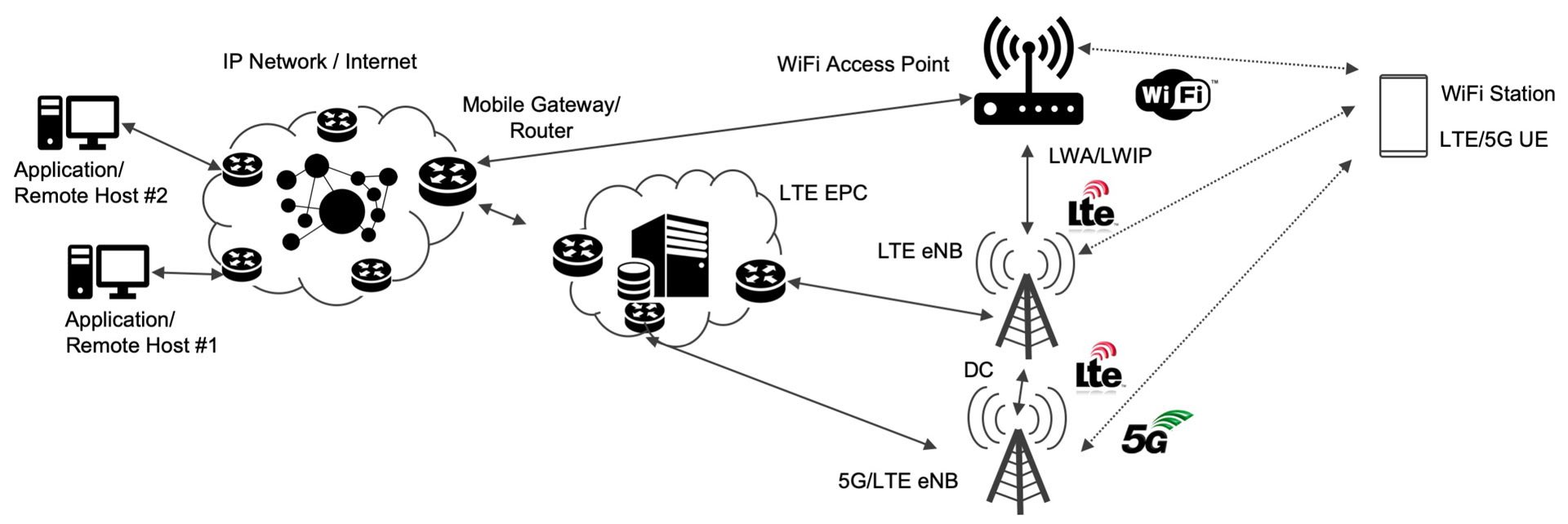

Networking Setup Overview

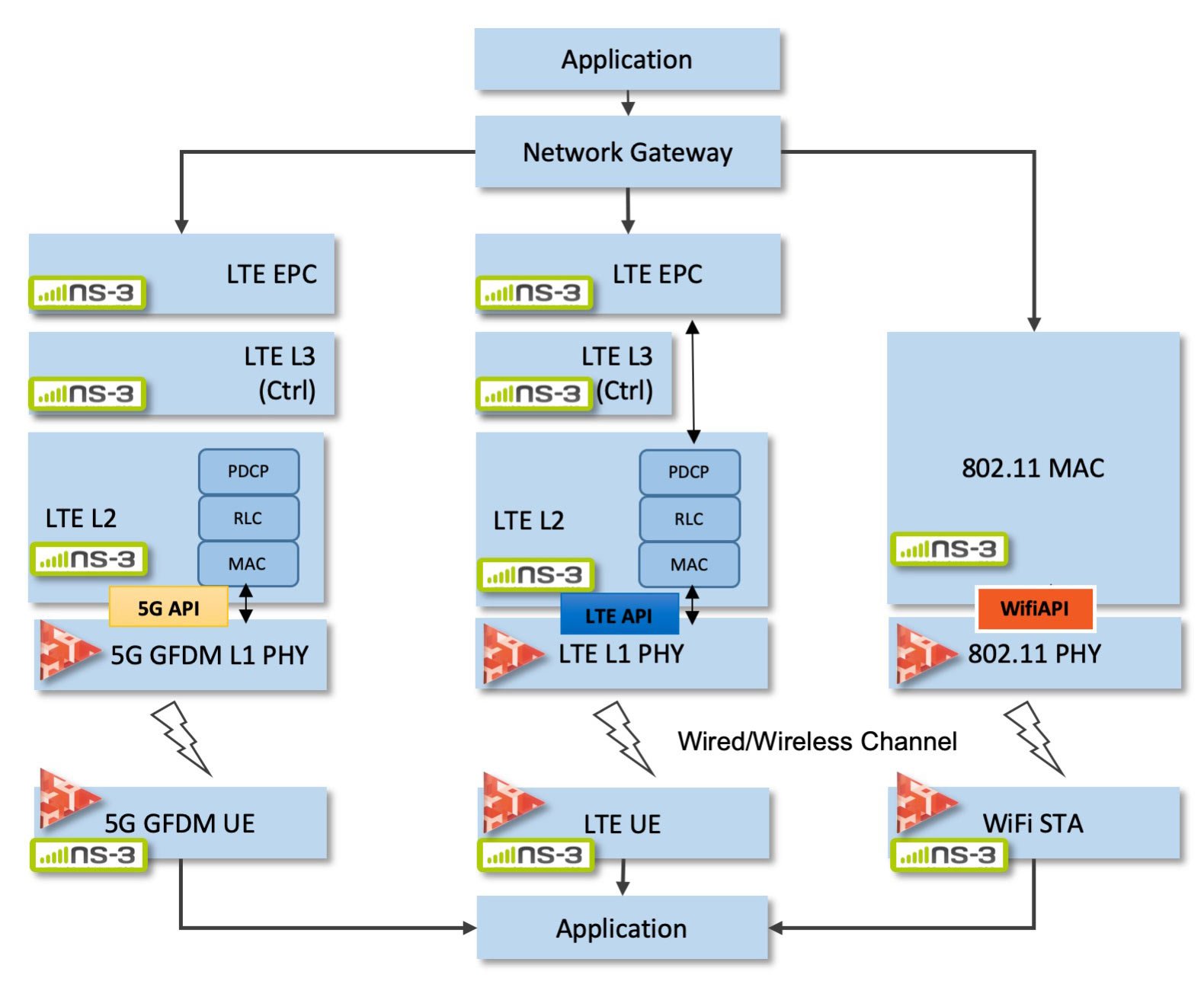

5G, LTE and WiFi Software Stacks
- Hardware platforms: NI USRP-2974, NI USRP-2954, NI USRP-2944, NI USRP-2953, NI PXI-8880
- Testbeds where the functionality can be used: OWL (Online Wireless Lab) (TU Dresden)
- Supporting partner: National Instruments ([email protected])
- Usage policies for accessing software & licensing terms:
- ORCA Open Call: Guaranteed access for ORCA partners and (funded) Third Parties during the ORCA project
- NI LTE and 802.11 Application Framework including NI L1-L2 API LV Implementation: The code is the property of National Instruments. The code is not open source. License may be granted to ORCA partners, funded Third Parties and other External Parties through executing a Technology License Agreement. See NI Application Framework License.
- NI L1-L2 API C++ ns3 Implementation: The code is open source, and can be accessed by both ORCA partners, funded Third Parties and other External Parties.
- Network Simulator 3 (ns3) Multi-RAT extensions: The code is open source, and can be accessed by both ORCA partners, funded Third Parties and other External Parties.
- 5G GFDM extensions to NI LTE Application Framework: For the NI LTE Application Framework software see term above. The extensions made for 5G GFDM are licensed under the terms of GPL and they are free accessible for non-commercial academic use (for other purposes contact TU Dresden)
- Beyond ORCA: NI software adaptations and ns-3 extensions are available through open github repository: https://github.com/ni/NI-ns3-ApplicationExample. The 5G GFDM extensions will be available under agreement with TU Dresden.
- ORCA Open Call: Guaranteed access for ORCA partners and (funded) Third Parties during the ORCA project
- Link to technical information:
- ORCA Deliverables
- D3.1: NI 802.11 L1-L2 API
- D3.3: NI LTE L1-L2 API
- D4.3: Platform description of network coordination strategies for LTE and WiFi
- D3.5: 5G GFDM PHY integration into Multi-RAT platform
- D4.5: Multi-RAT control functionalities and networking examples
